gpu_coverage::AbstractCamera Class Reference

Abstract superclass for all cameras. More...

#include <AbstractCamera.h>

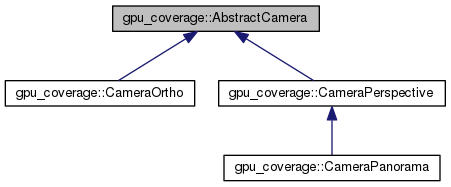

Inheritance diagram for gpu_coverage::AbstractCamera:

Public Member Functions
	AbstractCamera (const size_t id, const std::string &name, Node *const node)
	Constructor. More...
virtual	~AbstractCamera ()
	Destructor.
virtual void	setViewProjection (const LocationsMVP &locationsMVP, std::vector< glm::mat4 > &view) const
	Forward the view and projection matrices to the given locations of a GLSL shader and additionally return the view matrices. More...
virtual void	toDot (FILE *dot) const =0
	Write Graphviz Dot node representing this camera to file for debugging. More...
const glm::mat4x4 &	getProjectionMatrix () const
	Returns the 4x4 projection matrix of the camera. More...
const size_t &	getId () const
	Returns the unique ID of this camera. More...
const std::string &	getName () const
	Returns the name of this camera for logging. More...
Node *	getNode () const
	Returns the scene graph node that this camera is attached to. More...

Protected Attributes
const size_t	id
	Unique ID of the camera, see getId().
const std::string	name
	Name of the camera for logging, see getName().
Node *const	node
	Scene graph node assigned to this camera, see getNode().
glm::mat4	projectionMatrix

Detailed Description

Abstract superclass for all cameras.

See CameraOrtho, CameraPerspective, and PanoramaCamera subclasses.

Constructor & Destructor Documentation

gpu_coverage::AbstractCamera::AbstractCamera	(	const size_t	id,
		const std::string &	name,
		Node *const	node
	)

Constructor.

Parameters

[in]	id	The unique ID of this camera.
[in]	name	The name of this camera for logging.
[in]	node	The scene graph node to attach this camera to.

Member Function Documentation

const size_t& gpu_coverage::AbstractCamera::getId ( ) const

inline

Returns the unique ID of this camera.

Returns

ID.

const std::string& gpu_coverage::AbstractCamera::getName ( ) const

inline

Returns the name of this camera for logging.

Returns

Name of this camera.

If available, the name included in the input file read by Assimp is used, otherwise a generic string is constructed.

Node* gpu_coverage::AbstractCamera::getNode ( ) const

inline

Returns the scene graph node that this camera is attached to.

Returns

The scene graph node.

The node has to be passed to the constructor.

const glm::mat4x4& gpu_coverage::AbstractCamera::getProjectionMatrix ( ) const

inline

Returns the 4x4 projection matrix of the camera.

Returns

Projection matrix.

virtual void gpu_coverage::AbstractCamera::setViewProjection ( const LocationsMVP &  locationsMVP, std::vector< glm::mat4 > &  view  ) const

virtual

Forward the view and projection matrices to the given locations of a GLSL shader and additionally return the view matrices.

Parameters

[in]	locationsMVP	Struct with variable locations of a GLSL shader.
[out]	view	Will be set to the view matrices.

The view output vector will be resized and filled by the method.

This method assumes that there is only one view matrix.

Reimplemented in gpu_coverage::CameraPanorama.

virtual void gpu_coverage::AbstractCamera::toDot ( FILE *  dot ) const

pure virtual

Write Graphviz Dot node representing this camera to file for debugging.

Parameters

[in]

dot

Output Dot file.

Implemented in gpu_coverage::CameraPerspective, and gpu_coverage::CameraOrtho.

---

The documentation for this class was generated from the following file:

• include/gpu_coverage/AbstractCamera.h
